The ESC for coreless brushed motors is an upgraded mini ESC. It is optimal for teaching purposes, small drones & RC planes, small-scale robots, or any STEM projects. The ESC is plug-and-play which means that it can be easily connected to an Arduino or other microcontroller for reliable speed control of the coreless motors.
-51%
3D Electronic Components Kit | DIY STEM Circuit Learning Kit for kids
Original price was: ₹4,999.00.₹3,599.00Current price is: ₹3,599.00.
Smart Dustbin Project Kit–Arduino Compatible Ultrasonic Sensor System for Automatic Lid Opening
Original price was: ₹3,000.00.₹1,499.00Current price is: ₹1,499.00.

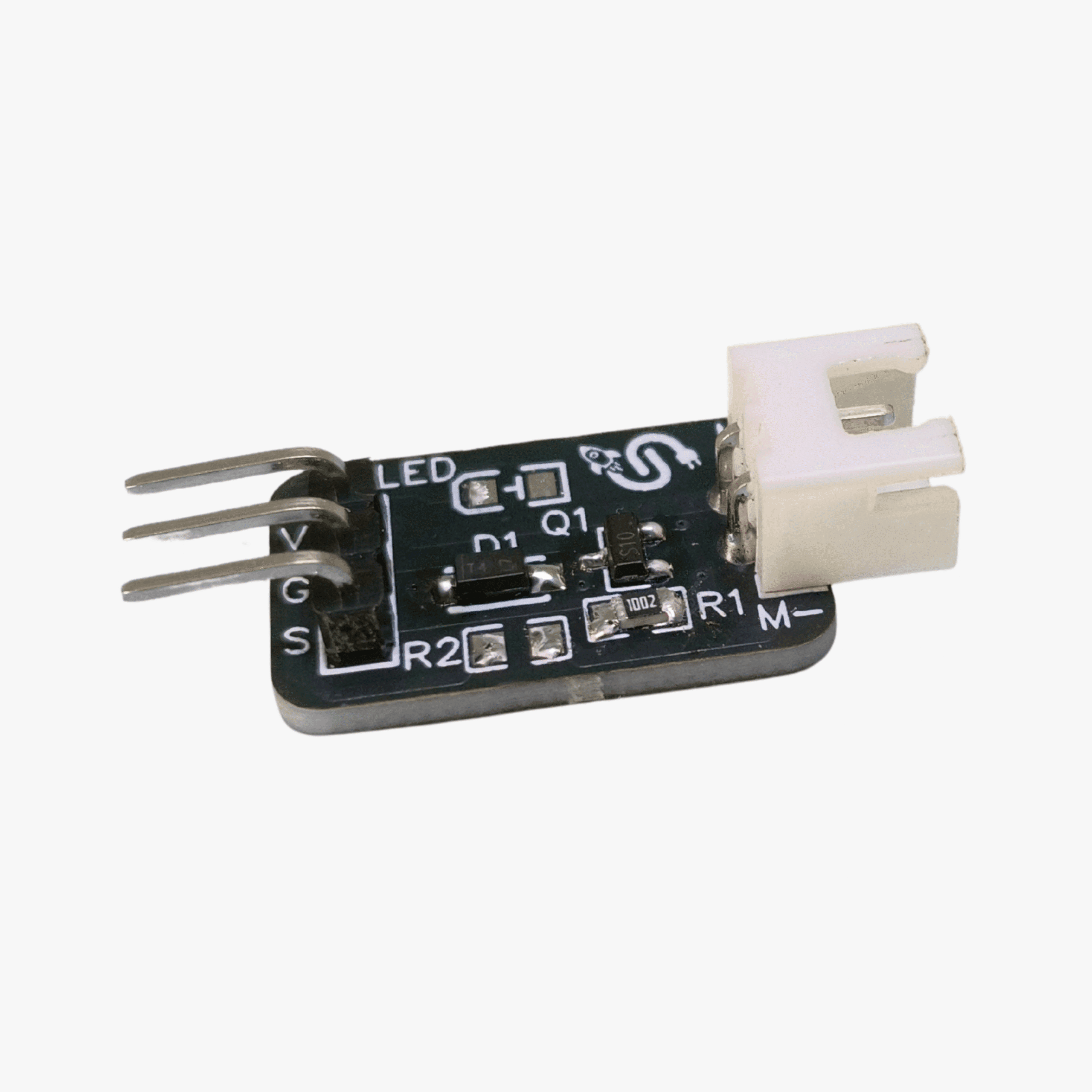

Mini Brushed ESC – Compact Motor Controller for Coreless Motors (3.7V–5V)
Original price was: ₹449.00.₹219.00Current price is: ₹219.00.
Description
Specifications
| Specification | Details |
|---|---|
| Voltage range | 3.7V - 9V DC. |
| Motor type | Brushed Coreless DC Motors. |
| Control input | Standard PWM 1ms-2ms pulse width. |
| Continuous current | ~1A depending on the motor. |
| Dimensions | Ultra-compact 20mm x 12mm. |
Features
- Input Power: 3.7 to 9V DC
- 3A max load currents supported
- The type of motor is Brushed Coreless DC motors.
- Control: Standard PWM control from Arduino, STM32, ESP32, and other MCUs.
- Size: Compact construction mini drones and tight spaces.
- Power: Low consumption.
- STEM-friendly and friendly for beginners.
- Wiring: Input/output connections are pre-soldered.
- Very lightweight (1.28 gm)
Package Includes

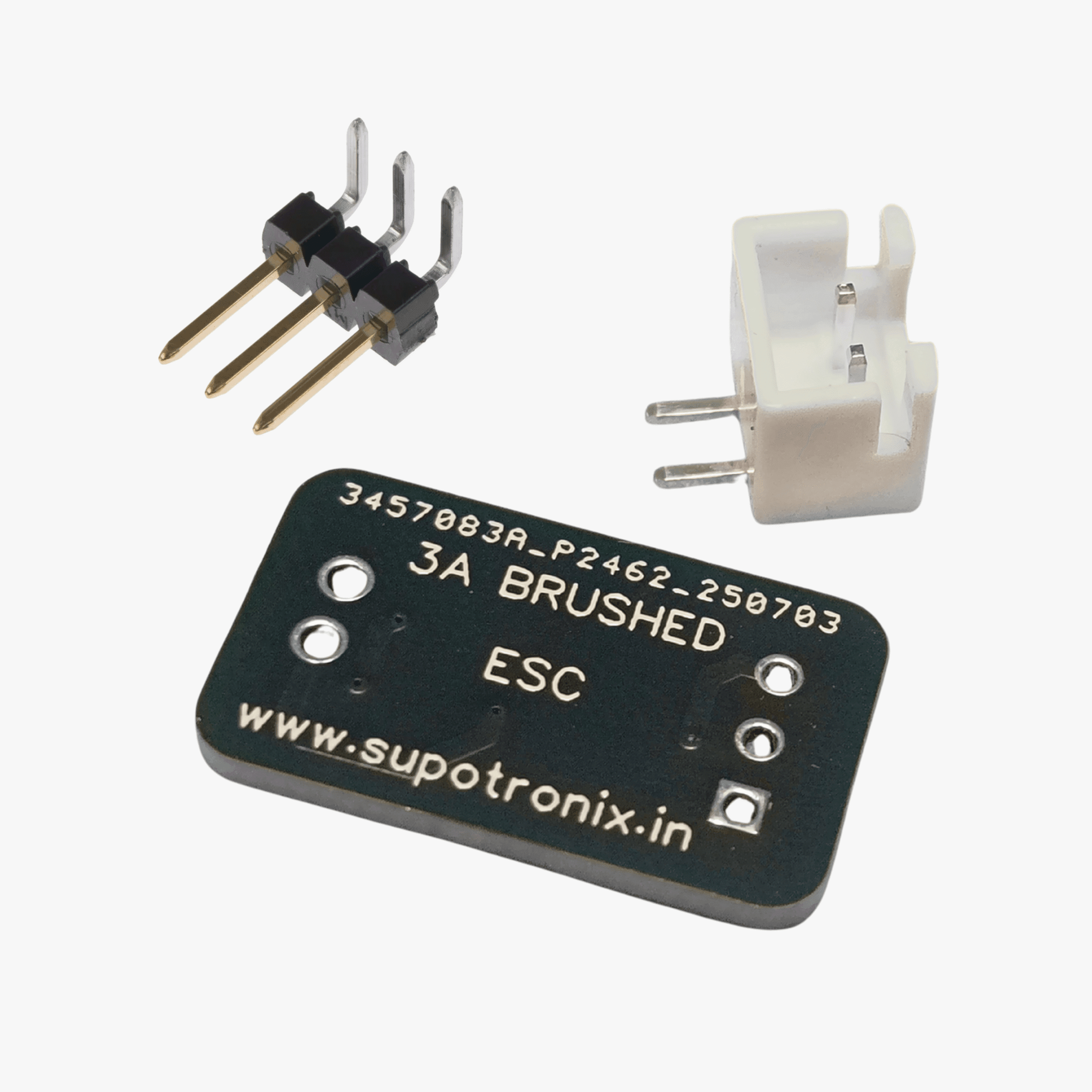

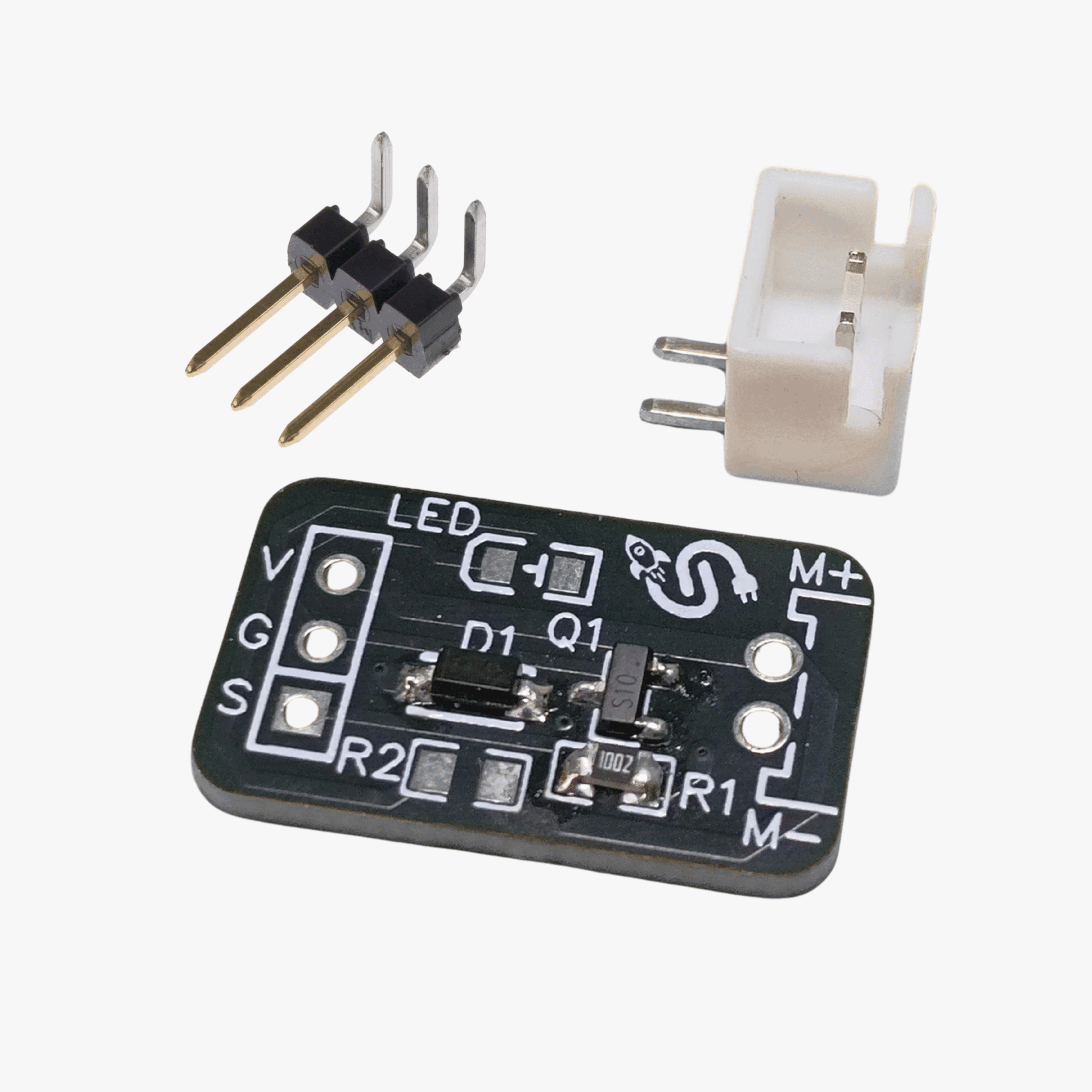

- 1x Mini Brushed ESC with Pre-Soldered Wires
- 1x Basic Connection Guide (PDF; downloaded or emailed)
- Further assistance issues for advanced troubleshooting are provided by Supotronix support
- Robotics as well as STEM educational kits and micro drone projects are all supported.
- Coreless motors of 3.7V–9V are supported.
- Signal Controlled (S) PWM
- Can be stored in any location due to ultra-compact size
- Students, makers, and engineers will find this accessory greatly beneficial.

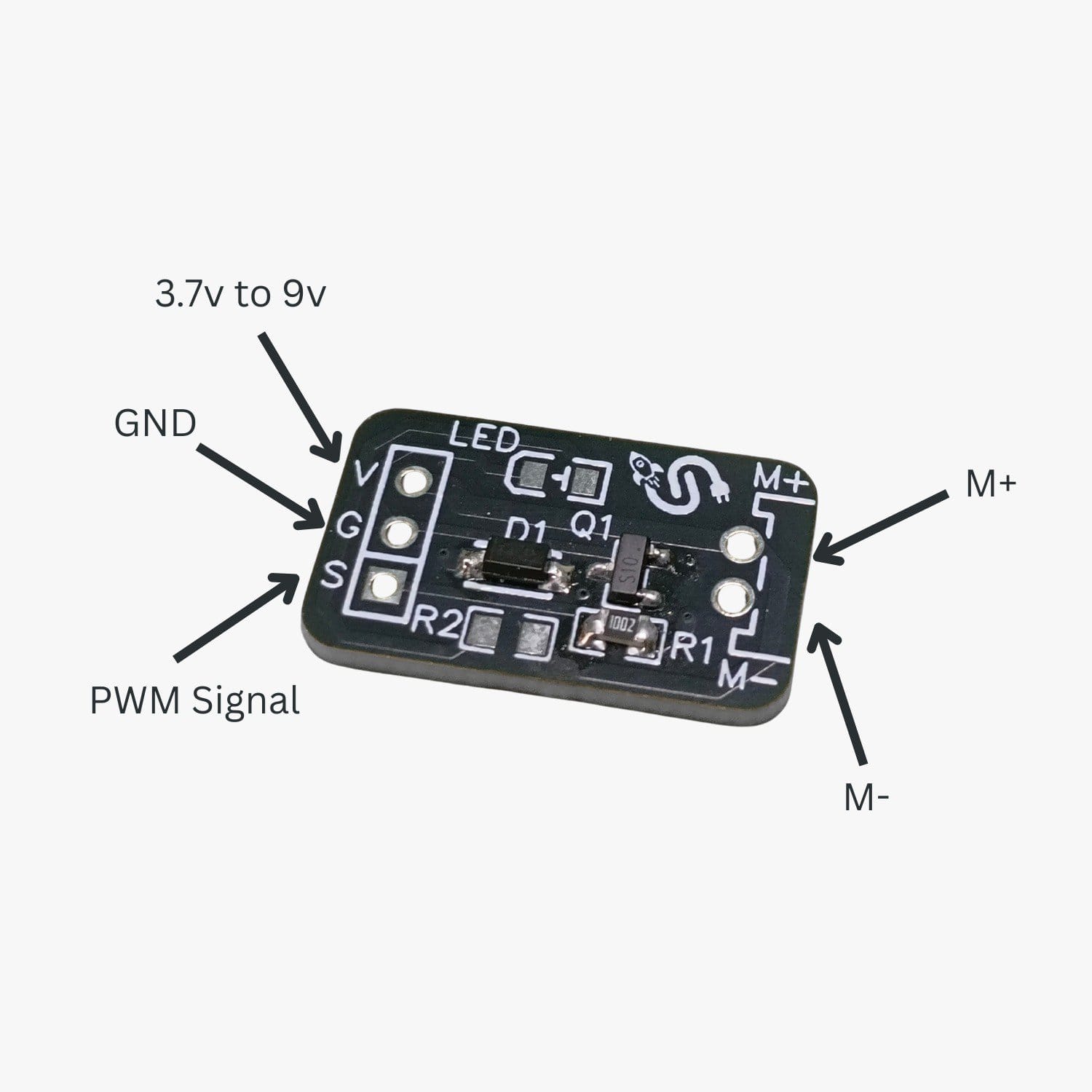

- Simple Connection: VCC (V), GND (G), Signal (S), and Motor Out (M+, M-)
Applications
- STEM and robotics learning kits.
- Projects involving mini drones and RC planes.
- Coreless motors testing and control.
- Toys and automation DIY projects.

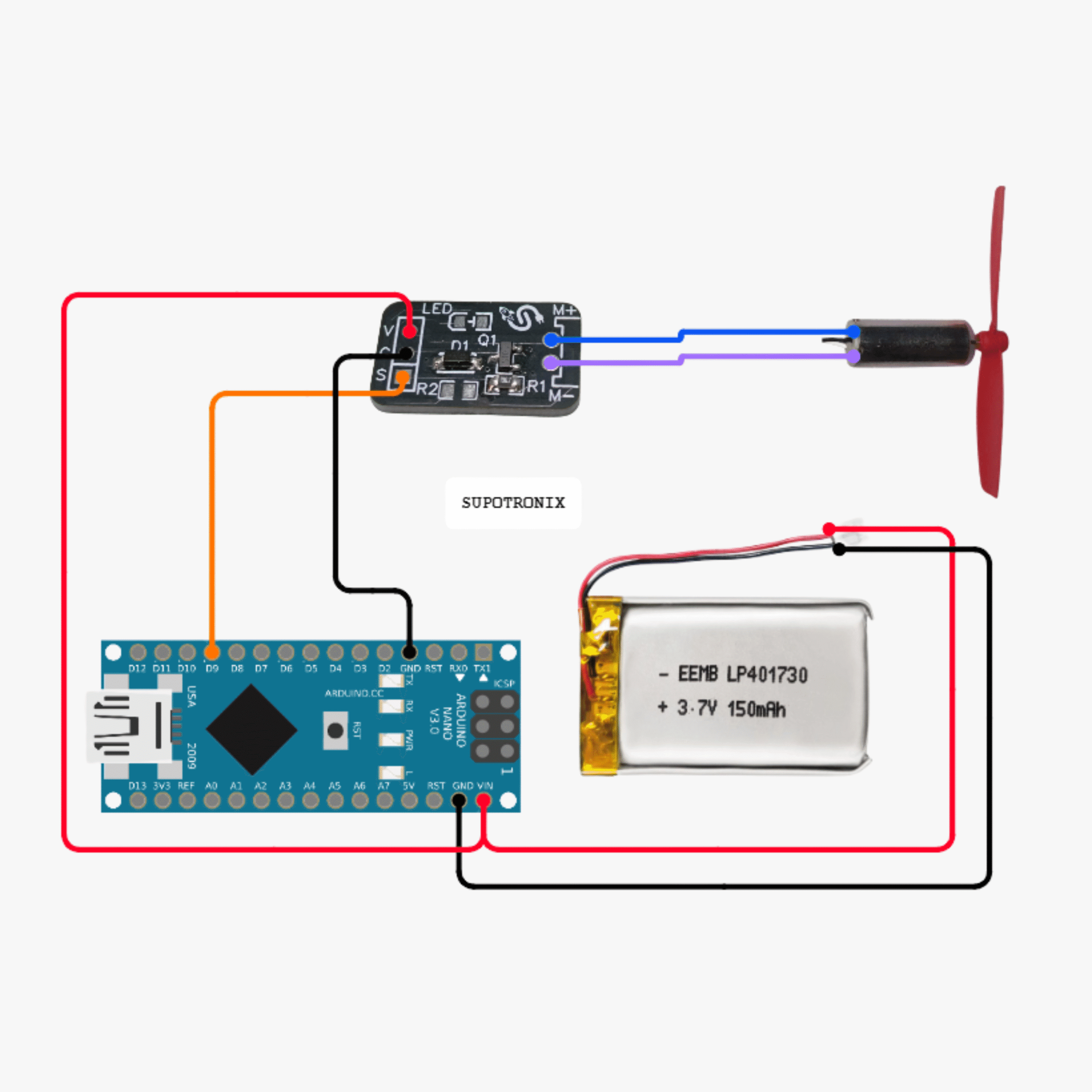

- Projects based on Arduino, esp32, esp8266 and Raspberry pi.
- Embedded systems that are low-weight and low-power.
